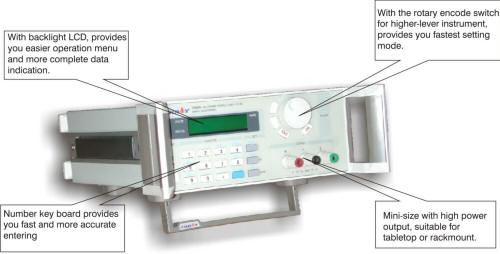

Programmable DC Power Supply

3644A
3645A
3646A



MAIN FUNCTIONS
¤ Set up a constant voltage (CV)
¤ Set up the protection current
¤ ON/OFF controlling the voltage output
¤ Store 10 sets of the set data


SUB FUNCTIONS
¤ Set up the maximum output voltage
¤ Set up the maximum output power
¤ Set up the communication
¤ Set up the password

SPECIFICATIONS
Type 3644A 3645A 3646A
Output 1 1 1
Output voltage 0-18V 0-36V 0-65V
Constant current 0-6A 0-3A 0-1.5A
Voltage resolution 1mV at 0-3.999V 1mV at 0-3.999 1mV at 0-3.999
  5mV at 4-18V 10mV at 4-36V 20mV at 4-65V
Current resolution <=2mA <=1mA <=1mA
Line regulation for voltage 0-3.999V 0.01%+3mV 0-3.999V 0.01%+3mV 0-3.999V 0.01%+3mV

4-18V 0.02%+10mV 4-36V 0.02%+10mV 4-65V 0.02%+10mV
Line regulation for current 0.02%+15mA 0.02%+10mA 0.02%+10mA
Load regulation for voltage 0.02%+40mV 0.02%+20mV 0.02%+10mV
Load regulation for current 0.02%+15mA 0.02%+10mA 0.02%+10mA
Ripple   Vrms<=2mVrms
Set up reaction time UP (50/90%) 10ms DOWN (90/50%) 30ms
Communication cable RS232/RS485*
ActiveX Free ActiveX for VC++/ VB/ DELPHI/ LABVIEW/ COM Cable
Memory 10 points EEPROM
Protective mode Over voltage/ over current/ over power
Mains voltage AC110/220 available (60/50HZ)
Operating environment 0-50°C 80%RH
Weight size 6.0kg WxHxD 250mmx212mmx88mm
Accessories Software, users manual, AC power cable, handlebars
Optional purchasable accessories Communication cable for RS232 , communication cable for RS485 & mounting rack
