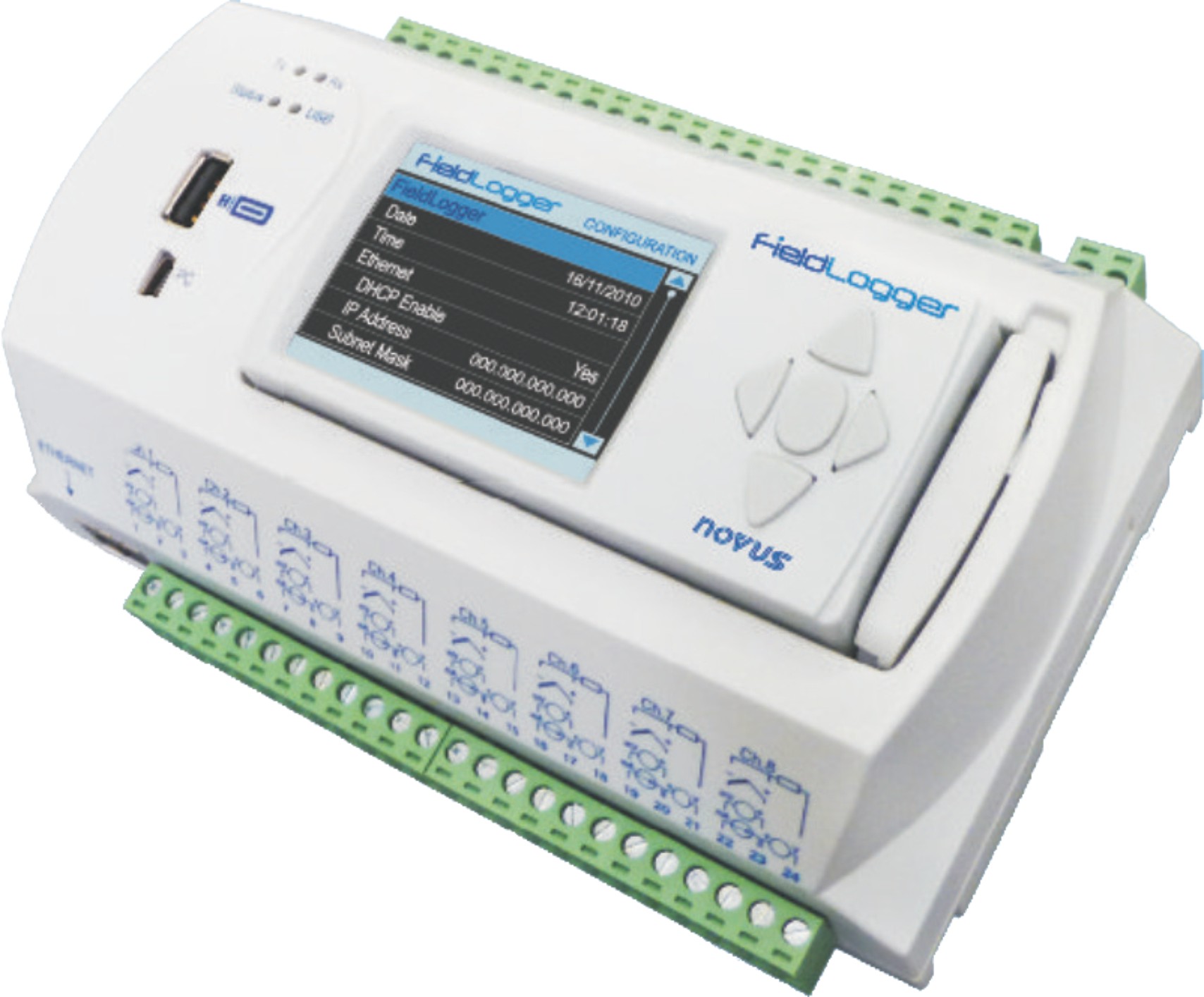

FieldLogger is a versatile, powerful and yet cost effective data
logger handling analog, digital and other types of variables with
high resolution and speed. It is a high performance and high
connectivity equipment and yet easy to configure and operate.
It has 8 configurable analog inputs that can read thermocouples,
Pt100, Pt1000, voltage and current signals. It also has 2 relay
outputs and 8 digital ports individually configurable as inputs or outputs.
Up to 128 mathematical channels can be used to perform
operations on the measured values. Up to 32 alarm events can be
detected, allowing output activations, e-mails and SNMP traps sending.
Its RS485 interface can operate as a Modbus RTU master or slave. As
a master, it can read and log up to 64 external channels. It has a
10/100 Mbps Ethernet interface that allows for access through a
browser (HTTP), FTP (client and server), e-mails sending (SMTP),
SNMP and Modbus TCP.
FieldLogger has one USB interface to be connected to a computer
(for configuration, monitoring and data download) and another
USB port for plugging a flash driver for data retrieval. The 512k
logging basic memory is used to store data and it can be greatly
expanded with an SD card.
An exclusive color HMI can be attached or remotely installed for
local indication or configuration. A user friendly configurator
software can be accessed by Ethernet, USB or RS485.
