A new concept of using horn cover
• By using the horn cover as a light globe, the size of the product has been reduced
significantly
• The color of light can be selected from red, yellow, green, or blue
• Product has two models : the basic model with 31 built-in sounds, and an external
sound (MP3) type model
• Includes seven different playback functions; one function is the continuous playback
function which provides constant message notification
• There are 31 built-in sounds that can be played in various environments, and supports
a Binary input method
• You can save and play up to 31 mp3 files using a external SD Card
• Can easily set up the sounds using a PC
• By making the horn cover with polycarbonate (PC) material, The product has
excellent durability and weather resistance
• Can be used for heavy-duty, ship, or outdoor use which requires waterproof, dustproof
structure (IP66)
• Easy device customization with built in sound selection function, volume adjustment
function and an SD Card slot for user inputted tones
• 31 available tones that can be selected for a variety of environments
• The user can select their own tones by inputting the MP3 file directly into the SD Card
• 31 pre-recorded tones available via binary input
• Suitable for use in environments that require a tight seal and superior dust protection
rated IP66
• Easy wiring though external terminal box
(QWCD35T, QWCD35TSD, QWCD50T, QWCD50TSD)
• Flashing rate : 60-80 flashes/min
• Materials : Horn-PC, Body-PC+ABS
• Ambient operating temperature : -50°C to +60°C(Standard type)
-20°C to +50°C(SD Card type)
• Protection Rating : IP66
• Certificates : CE Compliant, UL Listed, CCS
• Compliant with RoHS directive
built-in sound type
The input method of built-in sound type
Built-in sound type model supports Binary input mode which provides a selection of 31
different input combinations for five kinds of sounds.

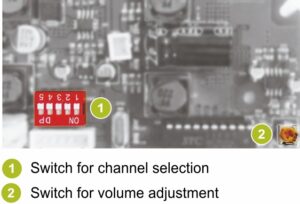

You can only select 2 numbers with 1 switch; ′′0′′, ′′1′′. With 5 switches you can have 31
combinations. Selecting one sound from 5 switches is the Binary input method.
SD Card(MP3) type
The sound selection method of SD Card type
Can easily select built-in sound or external sound(MP3) by using the sound selection
switch.
- 31 built-in special warning sounds
- Supports SD Card (MP3)
- Binary Input : 31Ch
- Bit Input : 5Ch (SD Card only)
- A multifunctional product that can play MP3 files
using an SD Card
- Please refer to Page 144 for detailed settings
- Built-in sound is set to #1 as default
