4/8 & 12 Way Alarm Annunciators
| ALARM ANNUNCIATORS WITH DISPLAY | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ADDA 4/8/12 ALARM ANNUNCIATORS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Developed by MIMIC COMPONENTS, this alarm
annunciator has been designed specifically for use with High
Voltage Panels which normally
operate with a battery supplied control voltage of 110V DC. The main distinguishing feature is ADDA's extremely low current consumption, hence battery power is conserved and this in turn enables the unit to operate directly off 110V DC with very little heat. ADDA can be supplied in modular compact modules (96x96mm) either 4 ways or 8 ways, which can be added together to make up any reasonable quantity of alarm points. The standard unit is made for 110V DC, however 24V and 48V DC units are also available. The system operates on a normally open contact which closes on fault. On receipt of a closing contact, the hooter sounds and the appropriate LED flashes. On acceptance, the hooter silences and the LED goes steady. In the Auto-Reset model the LED goes out when the fault clears. In the Manual Reset model, the LED stays on until the Reset button is pressed. In either case, fleeting alarms are latched until accepted. Subsequent alarms are recognized, i.e. If there are alarms on the system, a new alarm will initiate a flashing LED and sound the hooter without affecting existing alarms. The aim of the ADDA is to plug the gap in the market between the imported flag relays (which are expensive), and the industrial alarm annunciators. It also provides a locally manufactured unit designed specifically for reliable and immune operation in H.T. switch gear panels. Using conventional Industrial Alarm Annunciators for 110V DC is not satisfactory as they usually operate on 24V DC and thus require an expensive and often unreliable DC to DC converter.  NEW VELVAGRAPH FACE: MATT BLACK or
colour coordinated to your panel
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

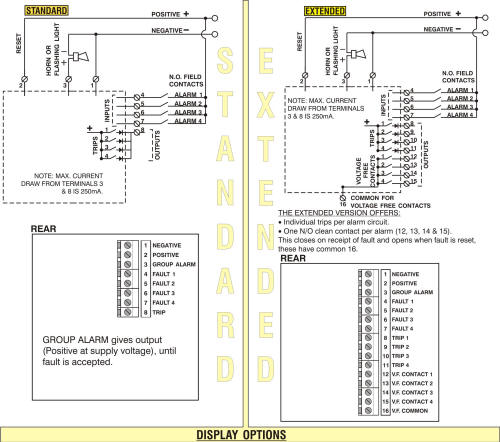

| CONNECTION DIAGRAMS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ADDA 4 “S” & “X” (STANDARD & EXTENDED VERSIONS) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AVAILABLE IN
MANUAL OR AUTRO-RESET MODELS, & FOR OPERATION ON 12, 24, 32, 48,
& 110V DC. This page must be read in conjunction with
ADDA4/8/12 Alarm Annunciators
|

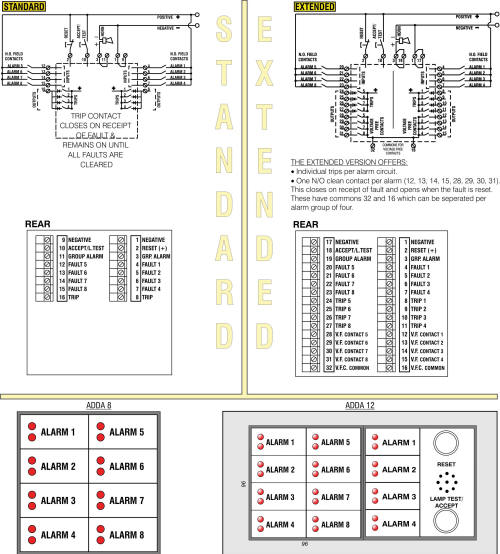

|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ADDA 4 “S” & “X” (Standard & Extended Version) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AVAILABLE IN MANUAL OR AUTO-RESET MODELS, & FOR OPERATION ON 12,
24, 32, 48, & 110V DC. THIS UNIT IS ONLY SUITABLE FOR NORMALLY
OPEN FIELD CONTACTS THAT CLOSE ON FAULT. This page must be read
in conjunction with
ADDA4/8/12 Alarm Annunciators Max. current draw from terminals 3, 8 to11, 16, 19, 24 to 27 is 250mA. Group Alarm is positive out at supply voltage 250mA, for Horn etc... In the Auto-Reset model there is no Reset button & positive is connected directly to terminal 2.  FRONT BEZEL (96x192mm)
PANEL CUT-OUT (92x188mm) NOTE:
Engraving of Front Panel is free if details are supplied on order,
otherwise engraving is extra.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

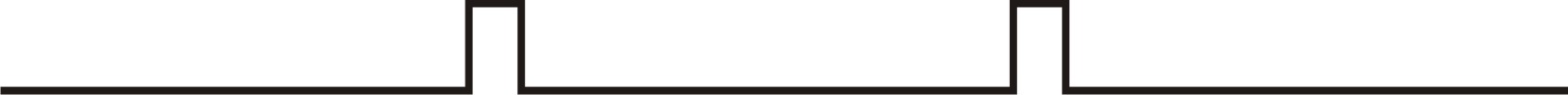

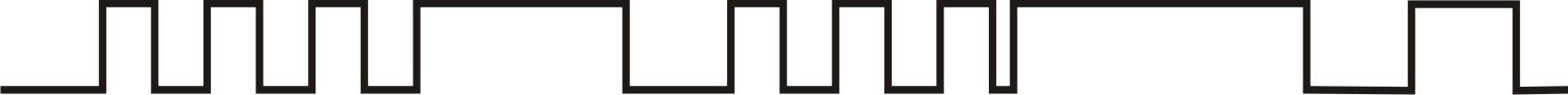

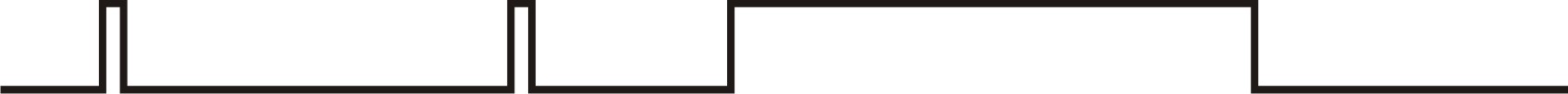

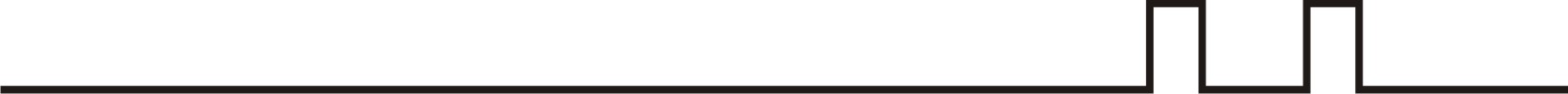

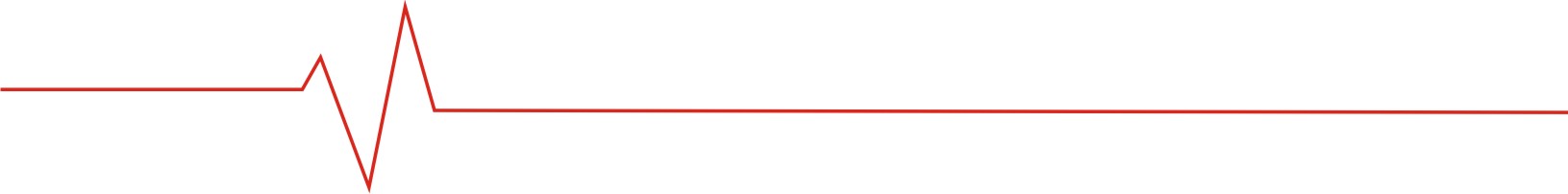

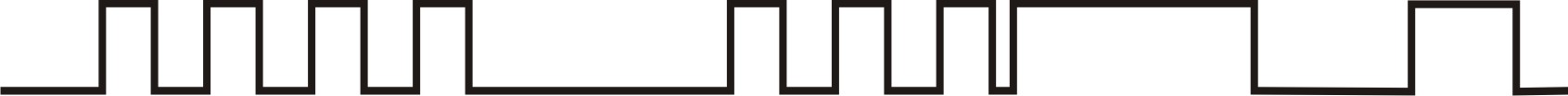

| RESET DIAGRAMS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ADDA 4/8/12 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
